7.2 Inspecting Drivers

You can use the Driver Inspector to view detailed information about the objects associated with a driver.

  1. In iManager, click to display the Identity Manager Administration page.

  2. In the Administration list, click Driver Inspector to display the Driver Inspector page.

    This page allows you to select a driver to inspect.

    Identity Manager Object Inspector page
  3. Specify the fully distinguished name of the driver that you want to inspect, or click the Browse icon icon to select the desired driver.

    iManager keeps a record of the objects you have previously selected, so you can also use the History icon icon to select from a list of previously selected objects.

  4. After you’ve selected the driver to inspect, click OK to display the Driver Inspector page.

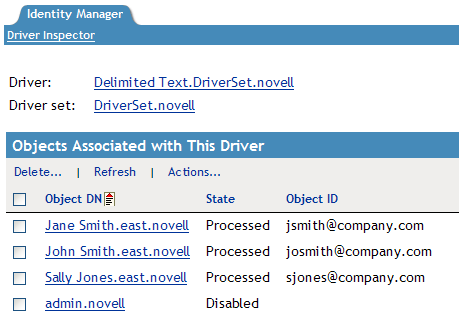

    The page displays information about the objects associated with the selected driver. You can perform any of the following actions:

    • Driver: Displays the name of the inspected driver. Click the driver name to display the Driver Overview page.

    • Driver Set: Displays the name of the driver set in which the inspected driver resides. Click the driver set name to display the Driver Set Overview page.

    • Delete: Removes the association between the driver and an object. Select the check box in front of the object you no longer want associated with the driver, click Delete, then click OK to confirm the deletion.

    • Refresh: Select this option to re-read all of the objects associated with the driver and refresh the displayed information.

    • Show: Select the number of associations to display per page. You can select a predefined number (25, 50, or 100) or specify another number of your choice. The default is 50 associations per page. If there are more associations than the number displayed, you can use the and buttons to display the next and previous pages of associations.

    • Actions: Perform actions on the objects associated with the driver. Click Actions, then select one of the following options:

      • Show All Associations: Displays all objects associated with the driver.

      • Filter for Disabled Associations: Displays all objects associated with the driver that have a Disabled state.

      • Filter for Manual Associations: Displays all objects associated with the driver that have a Manual state.

      • Filter for Migrate Associations: Displays all objects associated with the driver that have a Migrate state.

      • Filter for Pending Associations: Displays all objects associated with the driver that have a Pending state.

      • Filter for Processed Associations: Displays all objects associated with the driver that have a Processed state.

      • Filter for Undefined Associations: Displays all objects associated with the driver that have an Undefined state.

      • Association Summary: Displays the state of all objects associated with the driver.

    • Object DN: Displays the DN of the associated objects.

    • State: Displays the association state of the object.

    • Object ID: Displays the value of the association.
