B.2 Historical Approval Flow Report

The Historical Approval Report is generated from the events listed in the following table. For more information on the events, see Section A.0, Identity Manager Events.

Table B-2 Historical Approval Events

Event ID

Description

Trigger

31520

Workflow_Error

Occurs when there is a workflow error. Many errors can trigger this event.

31521

Workflow_Started

Occurs when the workflow starts.

31522

Workflow_Forwarded

Occurs when the workflow is forwarded.

31523

Workflow_Reassigned

Occurs when the workflow is reassigned.

31524

Workflow_Approved

Occurs when the workflow is approved.

31525

Workflow_Refused

Occurs when the workflow is refused.

31526

Workflow_Ended

Occurs when the workflow ends.

31527

Workflow_Claimed

Occurs when the workflow is claimed.

31528

Workflow_Unclaimed

Occurs when the workflow is not claimed.

31529

Workflow_Denied

Occurs when the workflow is denied.

3152A

Workflow_Completed

Occurs when the workflow is completed.

3152B

Workflow_Timedout

Occurs when the workflow timed out.

31533

Workflow_Retracted

Occurs when the workflow is retracted.

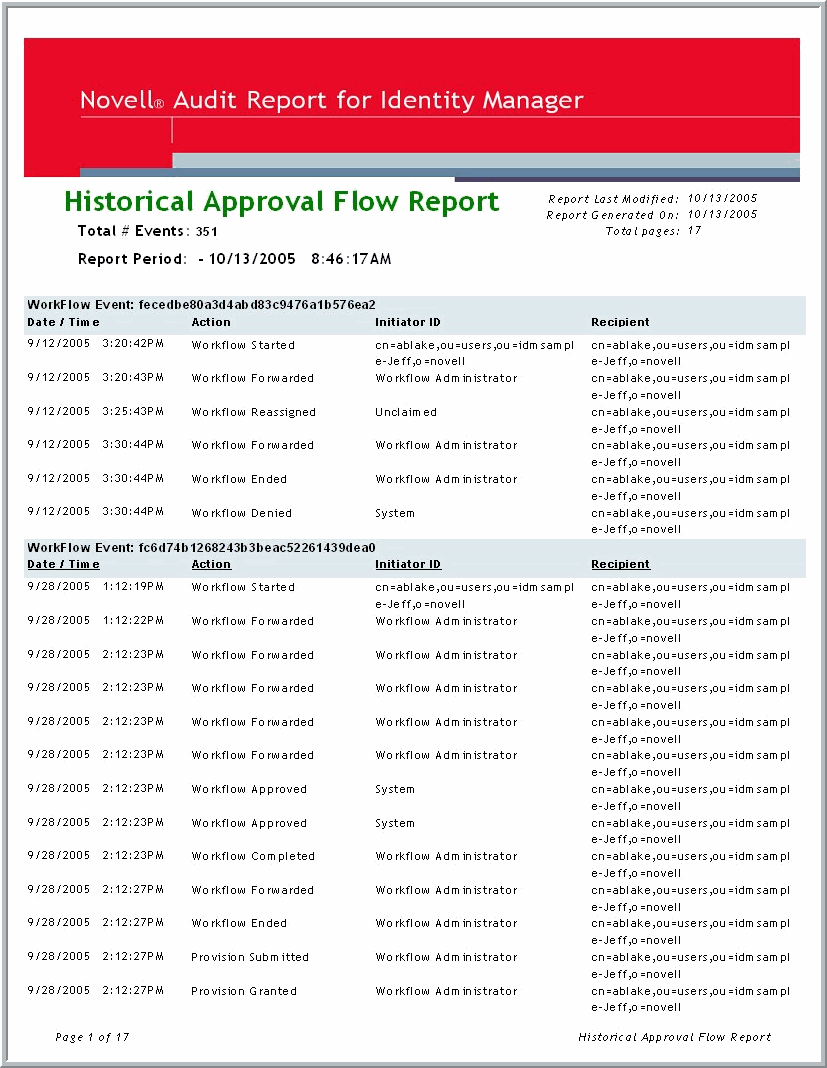

Figure B-2 Historical Approval Flow Report
