The following figure illustrates Modeler options that are available when you right-click empty Modeler space.

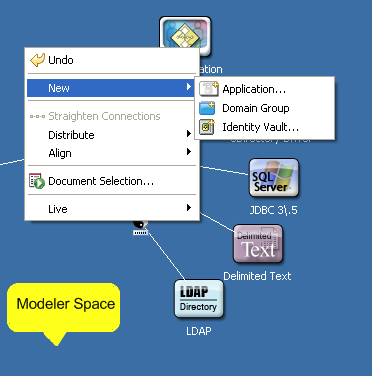

Figure A-1 Modeler-Space Operations
Table A-1 Modeler-Space Operations
Right-Click Operation |
Description |
---|---|
Undo |
Returns an item to its previous status. |
New > Application |
Selects an application from a list and places the application to the Modeler. |
New > Domain Group |
Places a Domain Group in the Modeler. |
New > Identity Vault |
Launches a dialog box that specifies a server and creates an Identity Vault. |
Straighten Connections |
Straightens lines for selected items. For example, you can straighten a line to a driver, all lines in a driver set, everything in a Domain Group, or an entire project. If a line is not within a few degrees of being horizontal or vertical, this option is dimmed. |
Distribute |
Evenly distributes applications vertically or horizontally. Press Ctrl, select the items that you want to distribute, then select a pattern. |
Align |
Aligns applications according to a pattern that you select. Press Ctrl, select the items, then select a pattern (for example, Align Bottom). |
Document Selection |
Launches the Document Generation Wizard, which documents your project. |
Live > Import |
Imports an Identity Vault. |
