Cloud Manager 2.5.1 Patch 2 Release Notes

February 2018

Cloud Manager 2.5 Support Pack 1 Patch Update 2 (2.5.1 Patch 2) resolves several issues for Cloud Manager 2.5.1. This patch is cumulative. It includes hotfixes and patches that have been provided since the Cloud Manager 2.5.1 release.

The documentation for this product is available in HTML and PDF formats at the Cloud Manager 2.5 Documentation website.

1.0 Version

This patch includes all of the files you need to update the Application Server 2.5.1 component of Cloud Manager to Application Server 2.5.1 Patch 2, and to update the Orchestration Server 3.5.1 component of Cloud Manager to Orchestration Server 3.5.1 Patch 2.

2.0 Resolved Issues for Patch 2

Cloud Manager 2.5.1 Patch 2 provides fixes for the following issues:

3.0 Resolved Issues for Patch 1 and Patch 2

Cloud Manager 2.5.1 Patch 2 provides fixes for the following issues that were previously provided as Cloud Manager 2.5.1 Patch 1.

3.1 Deployed Server Has Different Values of CPU and RAM

Issue: A timing issue results in CPU and RAM values being overwritten before the Save Configuration job runs during provisioning. (SR 101030383971)

Fix: In this release, Cloud Manager does not attempt to set CPU and RAM values if there is an ongoing action in CMOS. This approach should honor the intended settings in the Save Configuration job and avoid the previous timing issues.

3.2 Timed Out Waiting for Customizer VM to Shut Down

Issue: A provisioning job fails if the job times out while waiting for the customizer VM to shut down gracefully. (SR 101054777911)

Fix: If a provisioning job times out, Cloud Manager first attempts to force a shutdown of the customizer VM. The provisioning job fails only if the forced shutdown task fails.

3.3 CMOS Is Busy After vSphere Boot and Every 24 Hours Later

Issue: Disks were not properly discovered from VMware because the classes for VirtualDeviceRemoteDeviceBackingInfo were not included in the discovery. When vSphereUpdater compared disks against the information in CMOS, it incorrectly identified the disks as having changes and triggered resynchronization operations for them. The number of concurrent resynchronizations can overwhelm the server, such that CMOS was busy after a vSphere boot and every 24 hours later. (SR 101099332941)

Fix: This release correctly identifies the disks that have changed and triggers resynchronization only for the ones that have actually changed.

3.4 Reports Are Not Working If Clusters Use Windows Server 2016

Issue: Reports did not include information for Windows Server 2016 Clusters. (SR 101076042841)

Fix: This release adds support for Windows Server 2016 Clusters in reports.

4.0 Requirements

Apply the Cloud Manager 2.5.1 Patch 2 files to your existing Cloud Manager 2.5.1 Application Server and Cloud Manager 3.5.1 Orchestration Server.

5.0 Files Included in This Patch

Cloud Manager 2.5.1 Patch 2 is available on the Micro Focus Patch Finder website. Specify Cloud Manager as the product, then search for patches for Cloud Manager 2.5.

Cloud Manager 2.5.1 Patch 2 provides the NCM_2.5.1_PatchUpdate2.zip file that contains the updates. The patch update consists of a ZIP file with the Cloud Manager Orchestration Server update files, and an RPM file for the Cloud Manager Application Server updates.

  • cmos.zip (for the Orchestration Server), which includes these files:

    • customizeconstants.py
    • customizer.jdl
    • customizer.job
    • libcustomize.pylib
    • vi-client.jar
    • vsphere_interface.py
  • CMOS_Customizer_LiveCD.i686-2.1.0.iso

  • netiq-cloudmanager-2.5.1-xx.noarch.rpm (for the Application Server), where xx is the build number.

6.0 Applying the Orchestration Server Patch

To apply the Orchestration Server patch to your Orchestration Server, you must install the files in the cmos.zip file.

6.1 CMOS Patch Installation Prerequisites

Ensure that the following prerequisites are met before you install the patch files:

  • Cloud Manager Orchestration Server 3.5.1 is installed, and is up and running.

  • Extract the files from cmos.zip and copy them to an accessible directory on the Cloud Manager Orchestration Server.

  • Copy the CMOS_Customizer_LiveCD.i686-2.1.0.iso file to an accessible directory on the Cloud Manager Orchestration Server.

6.2 Installing the Orchestration Server Patch Files

Use the following instructions to install the patch files on your Orchestration Server 3.5.1 Server and update it to version 3.5.1 Patch 2.

NOTE:A restart is required after you apply the files to your existing Orchestration Server.

NOTE:If you see an incorrect FQDN on a workload after applying the files in this patch, you might need to rediscover the VMs.

Applying the CMOS_Customizer_LiveCD.i686-2.1.0.iso Patch File

To apply the CMOS_Customizer_LiveCD.i686-2.1.0.iso patch file to the Orchestration Server:

  1. Copy the CMOS_Customizer_LiveCD.i686-2.1.0.iso file to the following location:

    /opt/novell/zenworks/zos/server/doc/install/

    In a console, enter

    cp CMOS_Customizer_LiveCD.i686-2.1.0.iso /opt/novell/zenworks/zos/server/doc/install/

Applying the customizeconstants.py Patch File

To apply the customizeconstants.py patch file to the Orchestration Server:

  1. Replace the old customizeconstants.py file in the following location with the new customizeconstants.py file from the patch:

    /var/opt/novell/zenworks/zos/server/store/deployed/libcustomize.pylib-64/libcustomize.pylib/libcustomize/

    In a console, enter

    cp customizeconstants.py /var/opt/novell/zenworks/zos/server/store/deployed/libcustomize.pylib-64/libcustomize.pylib/libcustomize/

Applying the vsphere_interface.py Patch File

To apply the vsphere_interface.py patch file to the Orchestration Server:

  1. Replace the old vsphere_interface.py file in the following location with the new vsphere_interface.py file from the patch:

    /var/opt/novell/zenworks/zos/server/store/deployed/libcustomize.pylib-<jobid>/libcustomize.pylib/libcustomize/

Applying the libcustomize.pylib Patch File

To apply the libcustomize.pylib patch file to the Orchestration Server:

  1. Replace the old libcustomize.pylib file in the following location with the new libcustomize.pylib file from the patch:

    /var/opt/novell/zenworks/zos/server/snapshot/deployment/core/

Applying the customizer.job Patch File

To apply the customizer.job patch file to the Orchestration Server:

  1. Replace the old customizer.job file in the following location with the new customizer.job file from the patch:

    /var/opt/novell/zenworks/zos/server/snapshot/deployment/core/

Applying the customizer.jdl Patch File

To apply the customizer.jdl patch file to the Orchestration Server:

  1. Replace the old customizer.jdl file in following location with the new customizer.jdl file from the patch:

    /var/opt/novell/zenworks/zos/server/store/deployed/customizer.job-<jobid>/customizer.job/

Applying the vi-client.jar Patch File

To apply the vi-client.jar patch file to the Orchestration Server:

  1. Copy vi-client.jar to the following location:

    /var/opt/novell/zenworks/zos/server/store/deployed/vsphere.sar-<jobid>/vSphereUpdate.job/

  2. Restart the vSphereUpdate scheduled job.

    1. In the Scheduler view of the Orchestration Server console, locate and select the vSphereUpdate scheduled job.

    2. On the Job Arguments page of the Job details section of the view, locate the mode field, deselect its Lock check box, and type stop in the field.

    3. In the console toolbar, click Save, then in the Scheduler view, click Run Now. Monitor the job progress.

    4. When the Job status shows success, delete the stop argument you previously entered in the mode field at Step 2.b, then repeat Step 2.c.

      This step ensures that the new vi-client.jar library you applied to the Orchestration Server is transferred to the Orchestration Agent running the vSphereUpdate job. The new library fixes the vSphere updater on the agent.

Restart the CMOS Server

To restart the Orchestration Server from the command line, enter the following command:

/etc/init.d/novell-zosserver restart

7.0 Applying the Application Server Patch

To apply the Application Server patch to your Application Server, you must install the files in the netiq-cloudmanager-2.5.1-xx.noarch.rpm file.

7.1 CMAS Patch Installation Prerequisites

Ensure that the following prerequisites are met before you install this patch:

  • Cloud Manager Application Server 2.5.1 is installed, and is up and running.

  • Extract the netiq-cloudmanager-2.5.1-xx.noarch.rpm file from the patch and copy it to an accessible directory on the Cloud Manager Application Server, such as the /tmp directory.

7.2 Installing the Application Server Patch

After you have copied the patch file to the server, use the following steps to install the file:

  1. From the location where you copied netiq-cloudmanager-2.5.1-xx.noarch.rpm file, run the following command:

    rpm -Uvh --nodeps netiq-cloudmanager-2.5.1-xx.noarch.rpm

  2. Run the Cloud Manager configuration program from the following location:

    /opt/netiq/cloudmanager/configurator/config

  3. Choose to run an upgrade for the Cloud Manager Server.

  4. Verify that the netiq-cloudmanager-2.5.1-xx.noarch.rpm file is installed.

    1. Log in to the Cloud Manager Web Console.

    2. In the Web Console, click Help > About.

    3. In the About box, verify the following:

      • Server version is 2.5.1 and build number is 81.1.13

      • Web UI version is 2.5.1 dated 01/31/2018

8.0 Known Issues

NetIQ Corporation strives to ensure our products provide quality solutions for your enterprise software needs. There are no known issues for this patch release.

If you need assistance with specific product issues, please contact Customer Care.

9.0 Supplemental Documentation

Cloud Manager 2.5.1 Patch 2 provides a new option that enables you to configure a global setting for the number of workloads you can assign to a Business Service.

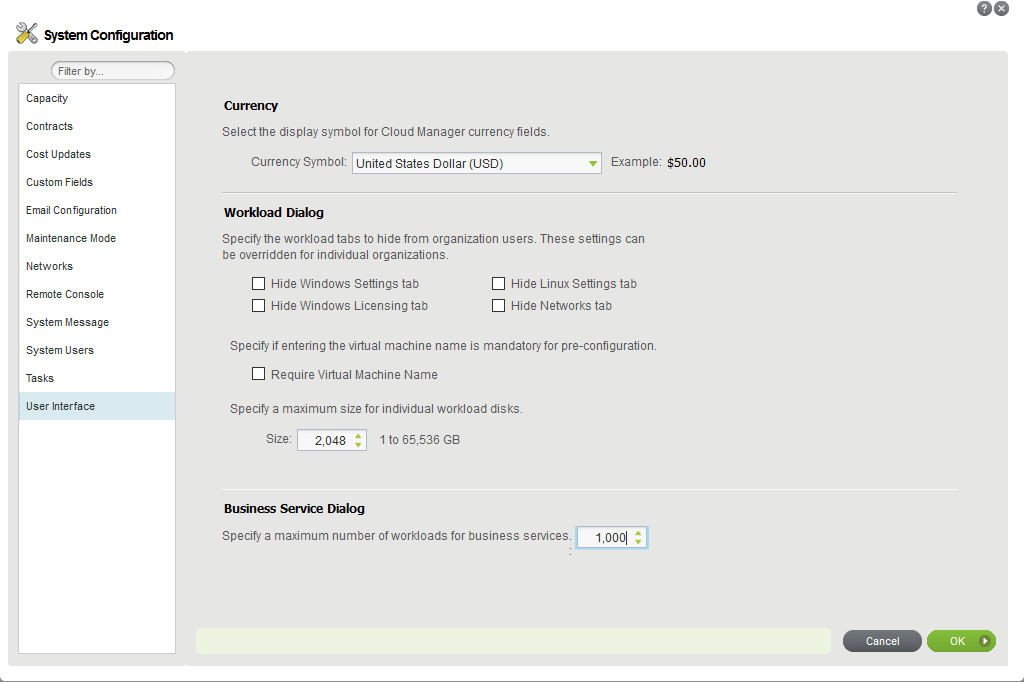

9.1 Configuring Maximum Number of VMs for a Business Service

You can limit the number of VMs allowed to be configured for a Business Service by setting a global system setting in the System Configuration dialog. The default value is 1000. This value is intentionally set to a high value to allow any practical number of VMs to be added to a Business Service.

Setting a limit is optional. You can specify a smaller value to enforce consistent maximum values and to improve performance in your environment. Specify a value based on your operational needs and performance characteristics of your deployment.

To specify a maximum number of VMs for a Business Service:

  1. In the System Configuration dialog, select User Interface.

  2. Under Business Service dialog, specify the maximum number of workloads to allow users to configure for each Business Service.

  3. Click OK to apply the setting.

10.0 Previous Releases

For documentation that accompanied earlier releases, visit the Cloud Manager Documentation website and scroll to Previous Releases.
