27.17 Configuring Integration with DUO Authentication Proxy

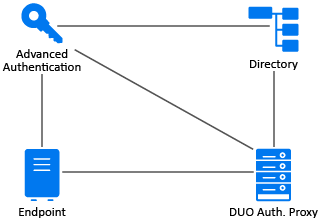

This section provides the configuration information of Advanced Authentication integration with the DUO Authentication Proxy. The following diagram represents Advanced Authentication in DUO Authentication Proxy.

27.17.1 Configuring the Advanced Authentication RADIUS Client

  1. Open the Advanced Authentication Administration portal.

  2. Click Methods > RADIUS Client.

  3. Specify the IP address of DUO Proxy server in Server.

  4. Specify the secret key for DUO Authentication Proxy in Secret.

  5. Specify the port to where the RADIUS authentication request is sent. The default port is 1812.

  6. Click Save.

  7. Click Chain > New Chain.

  8. Specify Radius Client in Name.

  9. Set Is enabled to ON.

  10. Move LDAP Password and RADIUS Client from Available to Used list

  11. Specify the repositories, roles and groups in Repos, Roles and Groups.

  12. Click Save.

  13. Click Events > Authenticators Management.

  14. Move LDAP Password and RADIUS Client from Available to Used list.

  15. Set Show the chain selection to ON.

  16. Click Save.

27.17.2 Configuring the DUO Authentication Proxy

  1. Sign-in to the DUO Authentication Proxy as an administrator.

  2. Click Applications > RADIUS.

  3. Specify a shared secret keyword in Secret Key.

  4. Specify the Advanced Authentication IP address in API Hostname.

  5. Specify the port. The default port is 1812.

  6. Click Save.
