16.1 Overview

Access Manager Appliance uses Sentinel Solution Pack to generate reports. This solution pack consists of predefined report definitions. Access Manager Appliance requires NetIQ Sentinel or Sentinel Log Manager to use this feature. You can use these reports to analyze users’ accesses to applications protected by Access Manager, in auditing, and for compliance purposes.

You can generate and download the following canned reports:

  • NetIQ Access Manager Application Access Summary

  • NetIQ Access Manager Application Specific User Access

  • NetIQ Access Manager Federation Summary

  • NetIQ Access Manager User Application Access Summary

  • NetIQ Access Manager User Login Contract Summary

  • NetIQ Access Manager User Login Failure Report

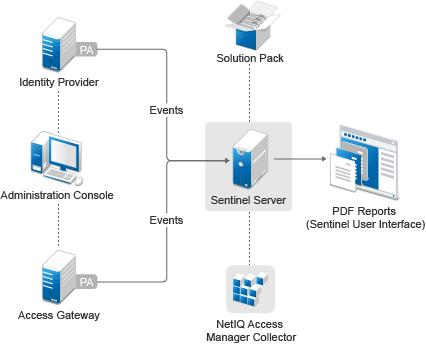

The following diagram illustrates the Access Manager Appliance reporting architecture when integrated with Sentinel:

  • When an event occurs in the Identity Server or Access Gateway, Platform Agent (PA) sends it to Sentinel.

  • In Sentinel, NetIQ Access Manager Collector parses these events and saves event data in the Sentinel database.

  • The NetIQ Access Manager Reporting Solution Pack provides predefined report templates. You can use this template against event data to generate PDF reports.

  • You can access a report through the Sentinel user interface by using a web browser.
